Peak PTT-M94G Mobile

Peak PTT-M94G Mobile LTE PoC Radio

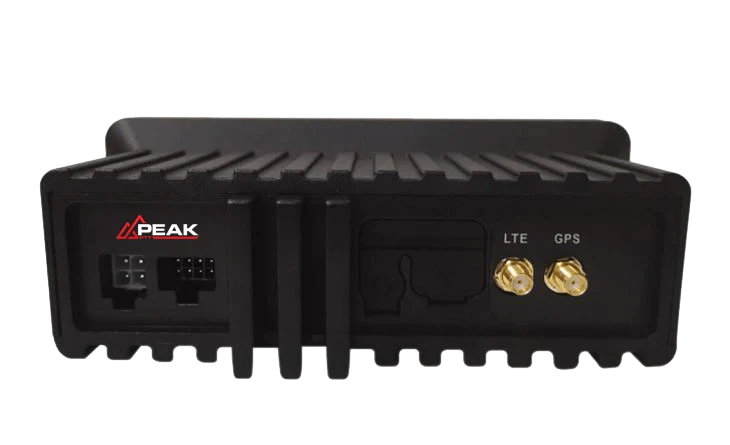

The PTT-M94G from PeakPTT® is a hardwired 4G LTE Mobile Push To Talk Over Cellular Radio. The PTT-M94G provides for always-on, instant 2-way radio communication that is DOT compliant.

• LTE Mobile Radio - 12-28 VDC VDC
• Talk to Group or Individual Users
• Integrates with K2 PC Dispatch Software
• SOS Button - Instant Emergency Notification

4G LTE / 3G	IP - NA	SOS	GPS Enabled

Powered On The PeakPTT® K2 PTT Network

PTT	Group Talk	1-1 Private	PC Dispatch	SOS

Device Activation: $19.95
Monthly Unlimited PTT Network Access: $24.95 per device. No contracts.

Peak PTT GPS Tracking Included:

Service includes unlimited access to the Exclusive Peak PTT GPS Tracking Portal.

From within the web-based tracking portal, view device locations as they update every 60 seconds.  See where your devices have been over the last 90 days, set geofences, and get text and e-mail alerts when your devices enter/exit locations you specify on a map.  You can even view the closest devices to an address and instantly send directions to your field personnel.

 Download: PTT-M94G Spec Sheet

Specifications:

Connectivity	Specifications
Network	FDD-LTE Bands B2/4/5/12/17
	UMTS Band WCDMA/HSDPA: 1900/850 MHz
GPS	1.57542 GHz / -144dBm, Tracking -159 dBm



Hardware	Specifications
Display	1.44" TFT Display
User Interface	K2 Platform
Dimensions:	7" L X 4.75" W x 2.75" H
Antenna	Combo GPS / LTE (10' Cable Length)
Certifications	FCC, PTCRB



Operating  Temperature/ Electrical	Specifications
Working Temperature	-22 °F to +167 °F
Voltage	12 - 28VDC

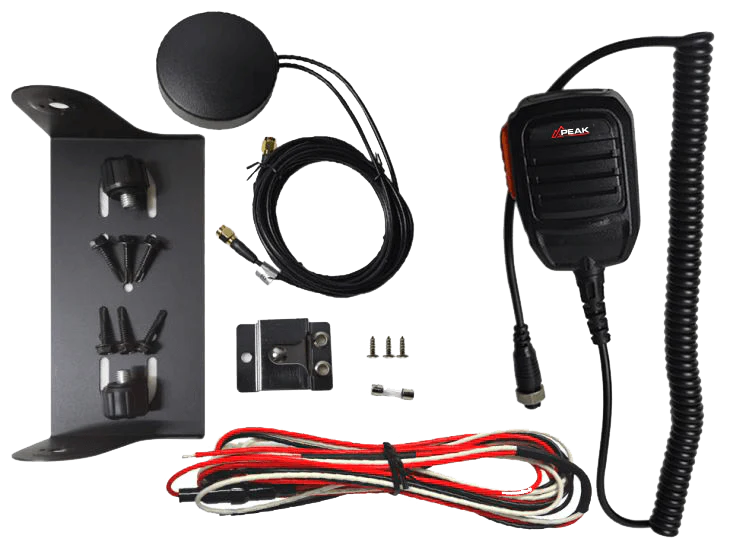

Included In The Box:

• M94G LTE Mobile Unit
• Palm Microphone
• Wiring Harness
• LTE / GPS Antenna
• Mounting Brackets/Screws

Warranty: 12 months limited.
